Description

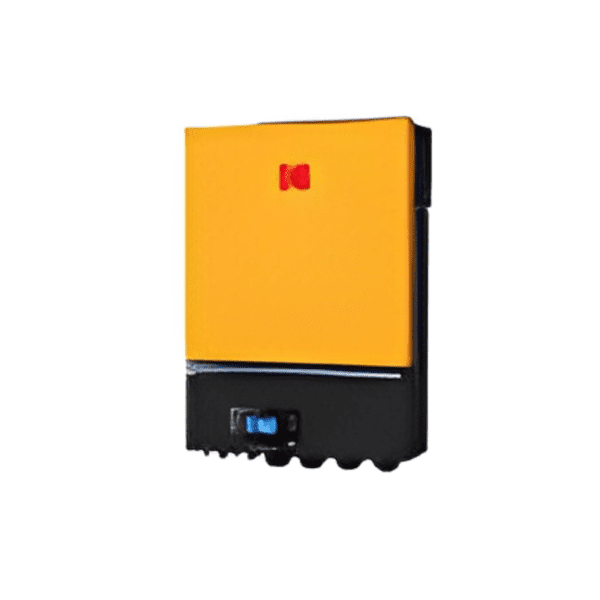

he KODAK OG-7.2 Max Off-Grid inverter is a 7200 watt inverter. This inverter boasts a dual 4kW MPPT. The OG-7.2 has a RGB light that changes colours depending on the inverter’s current working mode.
More features of the OG-7.2:
7200W of output power
Built in Wi-Fi for online monitoring via the IOS or Android app
BMS communication via RS485, makes it compatible with Pylontech,KODAK and Freedom Won batteries
Compatible with utilities main or generator
Built-in anti-dust kit
High Voltage MPPT, less PV cable means less cost and less installation time
Parallel up to 6 units
View a complete range of KODAK systems and design a bespoke solution in seconds using Quick Quote.
For protection against unstable grid it is a must to install the Sollotek AVS device. Not installing this device may affect your product warranty.
To ensure the inverter is properly protected, please see the AC Input Protection Application Note
Important
When using a battery bank with less than 7200W continuous discharge, please ensure Program 41 is set according to the continuous discharge current of battery bank. ie. 1x FL5.2 battery = 100A discharge. Then set program 41 = 100A Please note: When choosing surge protection for this product, please ensure the surge protection has a rating of 275/280Vac to ensure sufficient protection for the product as surge protection with a higher voltage rating does not offer adequate protection. OG-UPG-CONVERTER is required to update the inverter firmware. Please ensure the item is added to your quote. Please ask your account manager, order processor, or technical support advisor for further information.
