Description

This part is a special offer made up of the following items:
Part

Discount
2 x PYLON-UP5000
Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V
8.3%
1 x OG-7.2
KODAK Solar Off-Grid Inverter MAX 7.2kW 48V
7%

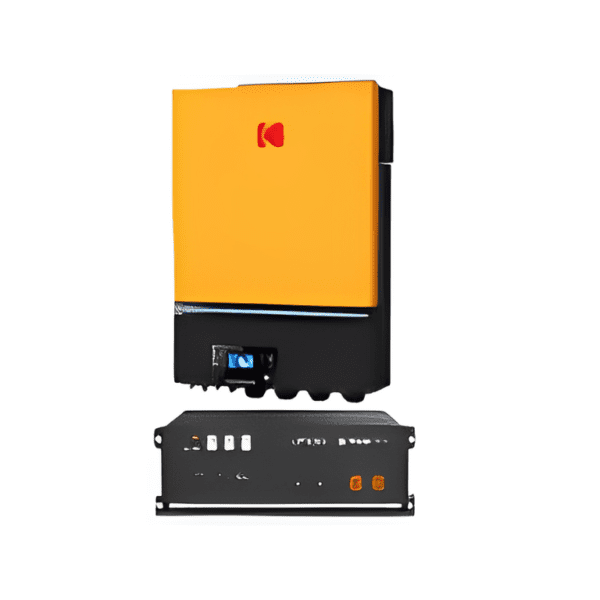

Power Pairing with 1 x Kodak Solar Off-Grid Inverter Max 7.2kW and 2 x Pylontech UP5000!!!
Inverter:
7200W of output power.
Built in Wi-Fi for online monitoring via the IOS or Android app.
BMS communication via RS485, makes it compatible with Pylontech,KODAK and Freedom Won batteries.
Compatible with utilities main or generator.
Built-in anti-dust kit.
High Voltage MPPT, less PV cable means less cost and less installation time.
Parallel up to 6 units.
Battery:
Modular design for ease of expansion
Higher usable capacity resulting in less battery modules installed
Usable capacity 4 560Wh
Parallel Capability of up to 16 units
Allows for large installation of up to 72.96kWh with no LV Hub
Intelligent BMS protecting battery cells
95% DoD with more usable capacity
RS485 and CAN compatible
Comes with a 5-year warranty non-extendable
Improvements:
C-Rating of 0.9C.
The UP5000 battery can be upgraded to 0.9C rating capabilities through a firmware update.
Continous charge and discharge current of 90A.
